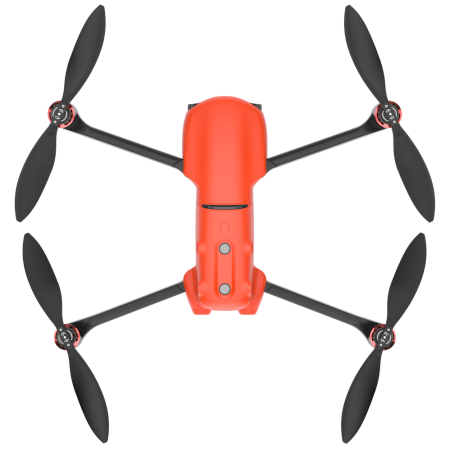

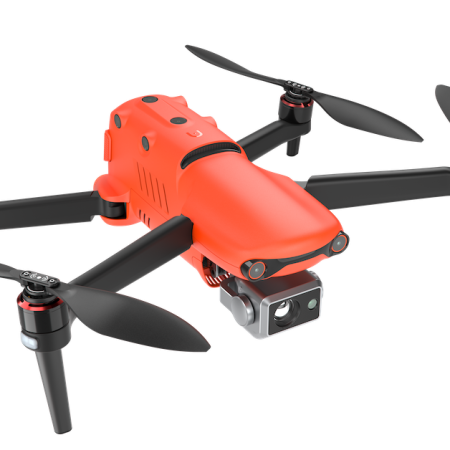

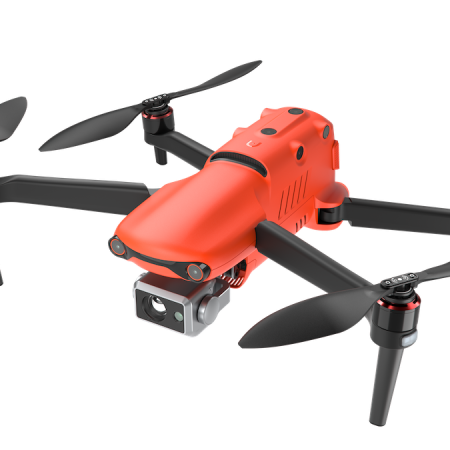

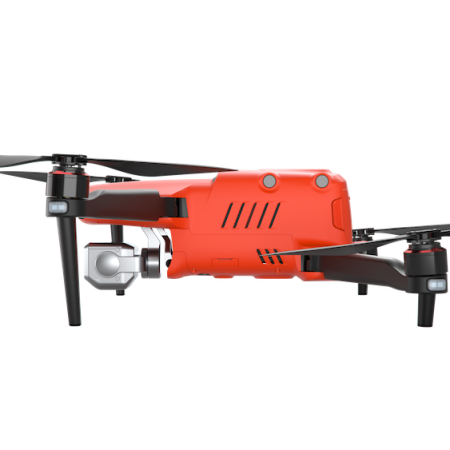

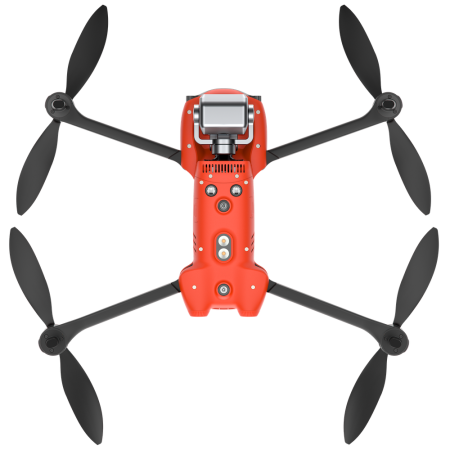

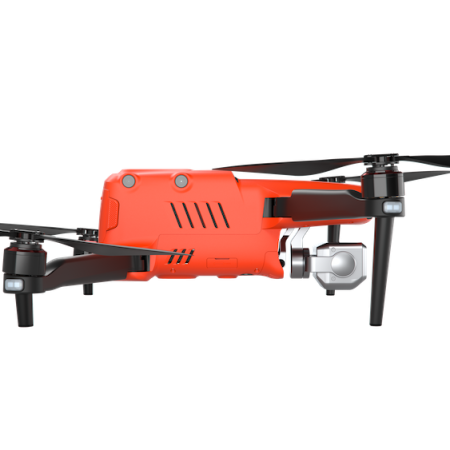

Autel Robotics new generation thermal camera
The EVO II RTK series integrates an entirely new RTK module, which provides real-time centimeter-level positioning data and supports Post-Processing Kinematic (PPK). The aircraft can record the original satellite observation data, camera exposure parameters and various other data. The positioning system supports A-RTK base station and RTK network, which helps to achieve accurate and stable data acquisition in complex operation environments.
Max Flight Time: 36 Minutes
Max Transmission: Range 9km
Max Speed: 20 m/s
DUAL CAMERAS, ACCURATE TEMPERATURE MEASUREMENT
EVO II Dual 640T RTK is equipped with a high resolution thermal imaging camera and 8K visible light camera, enabling you to capture highly detailed imagery to achieve optimal insights.
Precise temperature measurement
The EVO II Dual 640T RTK can accurately detect heat sources within a distance of 2-5 meters. By leveraging the compensation algorithm of infrared temperature measurement, the 640T RTK can regulate temperature deviations within 3 degrees Celsius.

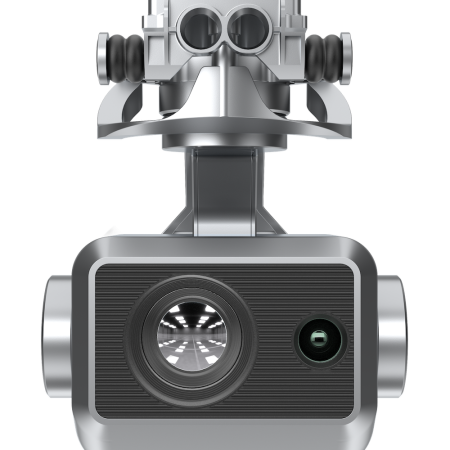

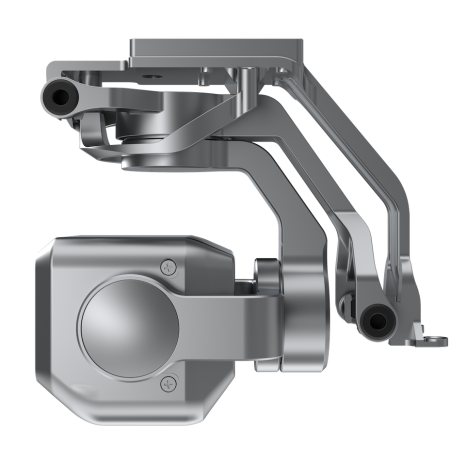

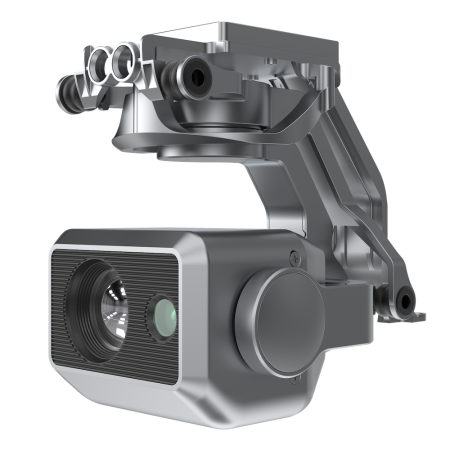

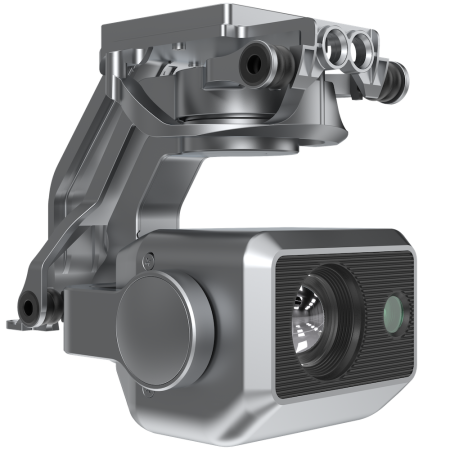

High-resolution Thermal imaging sensor
The 640T RTK has a 13mm focal length combined with a 640*512 thermal imaging sensor, and an 8K ultra-high-definition visible camera. Together, these sensors provide you with dual vision to give you the crisp and clear imagery you need to accomplish your missions.
Multiple Temperature Measurement Modes,
Professional Analysis Tool
Central Temperature
Measurement |
Spot Temperature Measurement |
Regional Temperature Measurement
Central temperature measurement: View real-time display of the temperature in the center area of the screen. Spot temperature measurement: Tap the screen, and the temperature of the selected object will be displayed in real-time. Regional temperature measurement: Get a dynamic view of the average temperature, maximum temperature, and minimum temperature displayed in a selected area.
Powerful Infrared Thermal Analysis Tool
Autel IR PC Tool: This free temperature measurement analysis tool is developed for the 640T, and enables users to quickly import images, edit and analyze temperature measurements, and to generate detailed reports for sharing and collaboration.
Temperature Alarm | Isotherm |
Image Enhancement
Temperature alarm: Monitors the screen temperature in real-time. The system prompts the user when the temperature reaches a set threshold. Isotherm: Set a temperature range and the system will detect any objects within the temperature range specified. Image enhancement: Supports real-time adjustment of image brightness, contrast, and image details. The system will highlight any objects within the temperature target.
- 640×512 Resolution
- Refresh rate: 30Hz
- Picture-in-picture mode
- 10 Thermal Color Palettes
Maximum efficiency in all viewing conditions
EVO II Dual supports up to 10 thermal palettes to cope with a variety of complex shooting environment and mission scenarios.
Picture-in-Picture Mode
The thermal image is integrated into the standard RGB image at the same time. This allows the user to obtain both visual and thermal data at the same time and allows for easier positioning and subject tracking.
Previous
Next
8K allows even the smallest detail to be captured and preserved
8K Video, unmatched clarity
Autel Evo II Dual records in resolutions up to 7680×4320. With 4 times as many pixels compared to 4k (and 16 times compared to HD), 8k videos redefine image clarity and depth.
48MP Camera
The Evo II Dual’s 48MP Sensor captures every forensic-relevant detail to assist in precise evidence capture. Both thermal and RGB images are provided with embedded Metadata making the EVOII Dual the ultimate Public Safety tool.
4X Lossless zoom
The high resolution provides the ability to zoom deep into a scene and crop an image or video to 4k without any loss in quality. Capture a scene, zoom in, and reframe your shots with ease.
4K HDR for greater dynamic range
4K HDR offers greater detail in highlights and shadows, providing higher-quality images from the most demanding environments.
